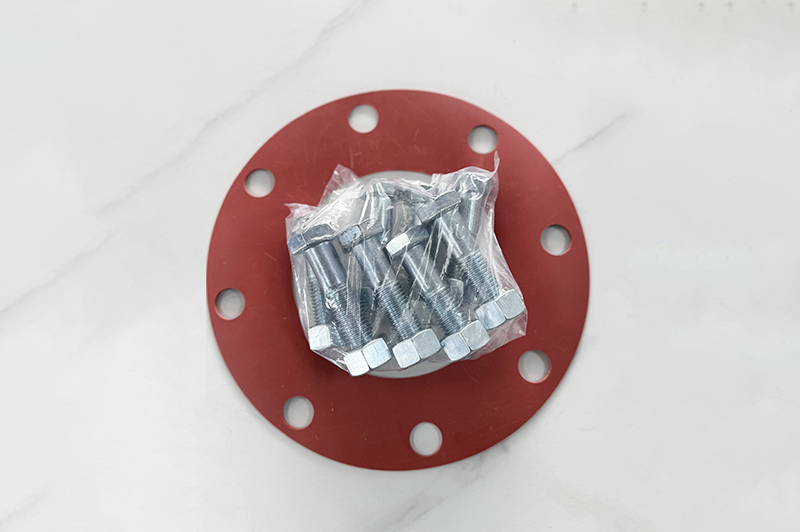

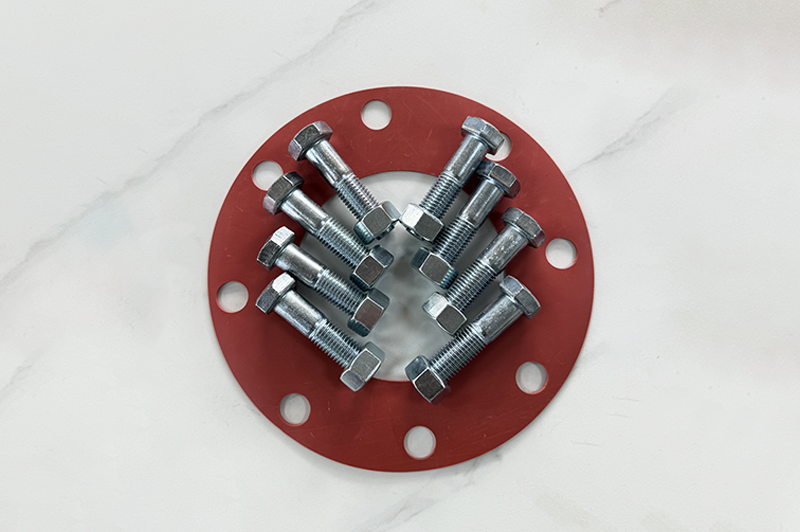

GASKET: 1/8’’ or 1/16’’ thick Full Face or Ring Style red rubber (styrene-butadiene or SBR) gasket per ANSI/AWWA C110/A21.10 and ANSI/AWWA C111/A21.11.
Other material gaskets (EPDM, Nitrile, Neoprene & FKM) are available on request.
HEX BOLT: Per ASME/ ANSI B18.2.1 Material per ASTM A307 Grade B, Zinc Plated as ASTM B633
HEX NUT: Per ASME/ ANSI B18.2.2 Material per ASTM A563 Grade A or B, Zinc Plated as ASTM B633
HEX BOLT & NUT: Per ANSI/AWWA C110/A21.10 and ANSI/AWWA C111/A21.11 and are threaded in accordance with ASME/ANSI B1.1
Note: SS304/316 Hex Bolts & Nuts are available upon request
